Grill Cabinets - Sizing and Cutouts

Learn how our cabinets are designed to work with a wide variety of grills and appliances.

Understanding how to choose the right sized Grill Cabinet option is an important step in planning your outdoor kitchen with Matchless Cabinet. This article takes a deep dive into how our Grill Cabinet, and Side Burner cabinet, are designed and how to use select for your chosen grill or other cooking appliances.

Cabinet Dimensions

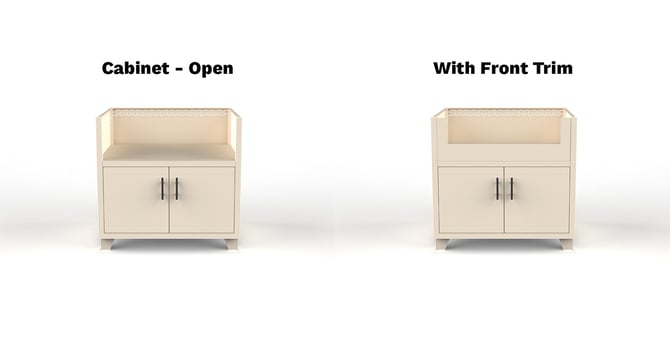

The Grill Cabinet - Patio Line and Side Burner Cabinet - Patio Line are crafted in standard sizes that fit a variety of grills and side burners, and are then finished with a customized front trim panel cut to the exact make and model of appliance you are installing.

grill_cutouts_1

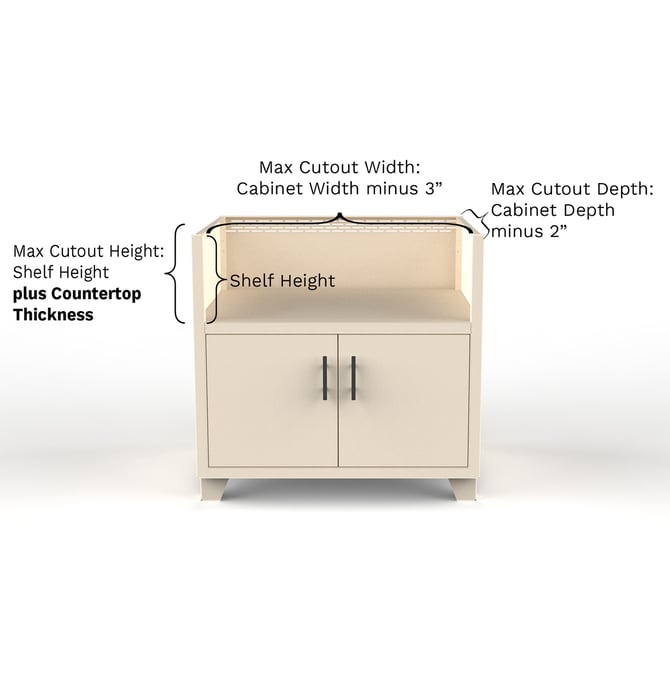

The maximum cutout dimensions are measured as:

grill_cutouts_2-1

Standard Shelf & Cutout Heights

Cabinet	Shelf Height	Max Cutout Height with Matchless countertops (1.25"
Grill Cabinets	8" 10.75" 12.75"	9.25" 12" 14"
Side Burner Cabinet	18.75"	20"
Side Burner Cabinet w/ Drop Kit	12.75"	14"
Low Side Burner Cabinet	12.75"	14"

Choosing the right size cabinet for your grill

When installing a drop-in or built-in grill or appliance, the manufacturer provides specific dimensions, including the Cutout Dimensions. Once you have these dimensions, refer to our cabinet sizes chart below to ensure that your appliance's cutout dimensions do not exceed the maximum cutout dimensions of the cabinet.

During the ordering process, you will provide Matchless Cabinet with details of your appliance's make and model. This allows us to precisely cut the front trim and countertops (if included) to fit your chosen appliance. For more information on freestanding and tabletop griddles like Halo and Blackstone, click here.

Maximum Cutouts by product

The following are the maximum cutouts allowed by each product variation of grill and side burner cabinets.

Grill Cabinet - Patio Line

Please consider your countertop plan and add the thickness of your countertop material to the heights referenced below.

Matchless Cabinet countertops are 1.25" thick

Product SKU	Cabinet Dimensions (W x D x H) (in)	Max Cutout (W x D x H) (in)	LP Tank Support?	Shelf Height (in)
RRC-715	30 x 28 x 34.75	27 x 26 x 8	Yes, free-standing	8
RRC-715LP	30 x 28 x 34.75	27 x 26 x 8	Yes, drawer included	8
RRC-781	33 x 28 x 34.75	30 x 26 x 8	Yes, free-standing	8
RRC-781LP	33 x 28 x 34.75	30 x 26 x 8	Yes, drawer included	8
RRC-716	36 x 28 x 34.75	33 x 26 x 8	Yes, free-standing	8
RRC-716LP	36 x 28 x 34.75	33 x 26 x 8	Yes, drawer included	8
RRC-784	39 x 28 x 34.75	36 x 26 x 8	Yes, free-standing	8
RRC-784LP	39 x 28 x 34.75	36 x 26 x 8	Yes, drawer included	8
RRC-717	42 x 28 x 34.75	39 x 26 x 8	Yes, free-standing	8
RRC-717LP	42 x 28 x 34.75	39 x 26 x 8	Yes, drawer included	8
RRC-787	45 x 28 x 34.75	42 x 26 x 8	Yes, free-standing	8
RRC-787LP	45 x 28 x 34.75	42 x 26 x 8	Yes, drawer included	8
RRC-733	48 x 28 x 34.75	45 x 26 x 8	Yes, free-standing	8
RRC-733LP	48 x 28 x 34.75	45 x 26 x 8	Yes, drawer included	8
RRC-790	51 x 28 x 34.75	48 x 26 x 8	Yes, free-standing	8
RRC-790LP	51 x 28 x 34.75	48 x 26 x 8	Yes, drawer included	8
RRC-749	30 x 28 x 34.75	27 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-782	33 x 28 x 34.75	30 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-750	36 x 28 x 34.75	33 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-785	39 x 28 x 34.75	36 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-751	42 x 28 x 34.75	39 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-788	45 x 28 x 34.75	42 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-752	48 x 28 x 34.75	45 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-791	51 x 28 x 34.75	48 x 26 x 10.75	Yes, with knockout panel removed	10.75
RRC-737	30 x 28 x 34.75	27 x 26 x 12.75	No	12.75
RRC-783	33 x 28 x 34.75	30 x 26 x 12.75	No	12.75
RRC-738	36 x 28 x 34.75	33 x 26 x 12.75	No	12.75
RRC-786	39 x 28 x 34.75	36 x 26 x 12.75	No	12.75
RRC-739	42 x 28 x 34.75	39 x 26 x 12.75	No	12.75
RRC-789	45 x 28 x 34.75	42 x 26 x 12.75	No	12.75
RRC-740	48 x 28 x 34.75	45 x 26 x 12.75	No	12.75
RRC-792	51 x 28 x 34.75	48 x 26 x 12.75	No	12.75

Side Burner Cabinet - Patio Line

Product SKU	Cabinet Dimensions (W x D x H) (in)	Max Cutout (W x D x H) (in)	Shelf Height (in)
RRC-728	18 x 28 x. 34.75	15 x 26 x 20	18.75
RRC-729	21 x 28 x 34.75	18 x 26 x 20	18.75
RRC-730	24 x 28 x 34.75	21 x 26 x 20 with Drop Kit: 18 x 26 x 14	18.75 with Drop Kit: 12.75
RRC-756	27 x 28 x 34.75	24 x 26 x 20 with Drop Kit: 21 x 26 x 14	18.75 with Drop Kit: 12.75
RRC-768	30 x 28 x 34.75	27 x 26 x 20 with Drop Kit: 24 x 26 x 14	18.75 with Drop Kit: 12.75

Low Side Burner Cabinet - Patio Line

Product SKU	Cabinet Dimensions (W x D x H) (in)	Max Cutout (W x D x H) (in)	Shelf Height (in)
RRC-753	18 x 28 x. 34.75	15 x 26 x 20	12.75
RRC-754	21 x 28 x 34.75	18 x 26 x 20	12.75
RRC-755	24 x 28 x 34.75	21 x 26 x 20	12.75
RRC-757	27 x 28 x 34.75	24 x 26 x 20	12.75

Using stand-alone griddles (such as Blackstone and Halo)

Our Grill Cabinet offers an optional Tabletop Griddle Insert to accommodate various Blackstone, Halo, and other griddles. Please see this article for more details on using our insert and making sure your griddle can fit. Contact us at info@matchlesscabinet.com if you require assistance.
